VHF - manufacturer of milling machines. milling tools & CAM software

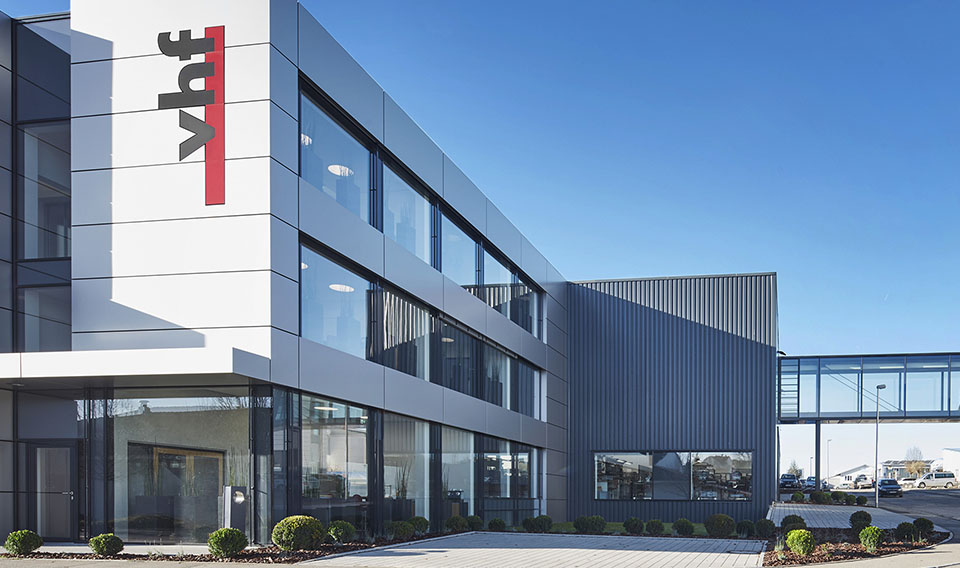

VHF camfacture AG is a manufacturer specializing in the production of modern CNC milling machines, high-quality milling tools, and user-friendly CAM software. Based in Ammerbuch (near Stuttgart), the company has over 35 years of experience as a specialist in mechanical engineering.

VHF offers complete solutions for milling applications. The company has international branches in New York and Shanghai and employs more than 350 people worldwide.

With a strong focus on both the dental sector and industrial applications, VHF has proven itself as a full-service provider in the field of CNC production (Computer Numerical Control). VHF machines are fully developed, designed, and manufactured in-house.

Creating Perfection | vhf camfacture AG

The machines of VHF

VHF Z4 - Chairside CNC millingmachine

The VHF Z4 is a high-quality 4-axis CNC milling machine, specifically designed for dental practices. This machine is ideal for wet milling materials such as glass ceramics, PMMA, zirconia, and composite. Titanium abutments can also be finished with high precision.

Thanks to its integration with software like 3Shape and Exocad, the Z4 offers a complete digital workflow: scanning, designing, and milling – all in-house and within just a few minutes. Discover the Z4 now.

Advantages of the VHF Z4

Milling and grinding in Ultra HD for superior surface quality
Industrial-grade construction with proven reliability
3 µm repeatability for maximum precision
Restorations ready in under 10 minutes
Block insertion in just 2 seconds
High-frequency electric spindle with 100,000 rpm for fast and efficient processing
PUREWATER technology: no milling additives needed (except for titanium processing)
Cost savings by directly milling screw access channels instead of using “meso” blocks
Automatic tool changer for 6 tools
Self-opening working chamber door and drawer for added convenience
Intuitive operation with a minimal learning curve
24-month warranty for worry-free productivity
Includes DENTALCAM software with DIRECTMILL technology – no license fees
Compatible with approximately 40 block materials from various manufacturers
Over 800 prefabricated titanium abutment blanks available
Validated for use with all major scanners and design software
Integrated workflows with TRIOS Design Studio (3Shape) and exocad ChairsideCAD*
Built-in touchscreen and Wi-Fi module for seamless operation
Internal compressed air system – no external compressor required

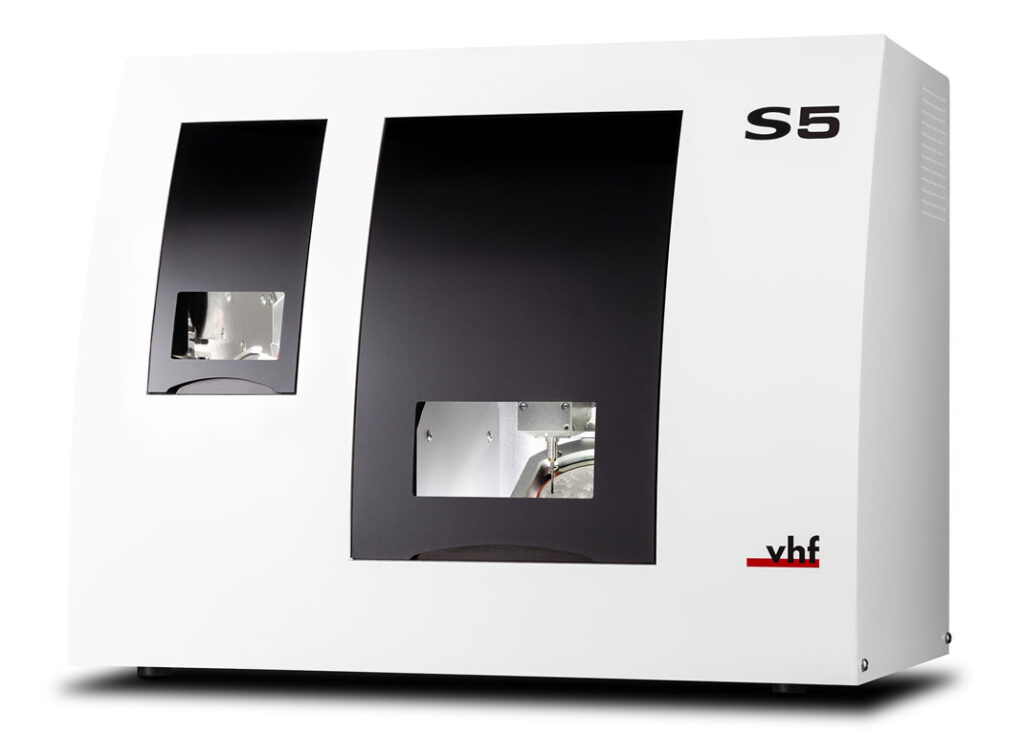

VHF S5 - versatile millingmachine

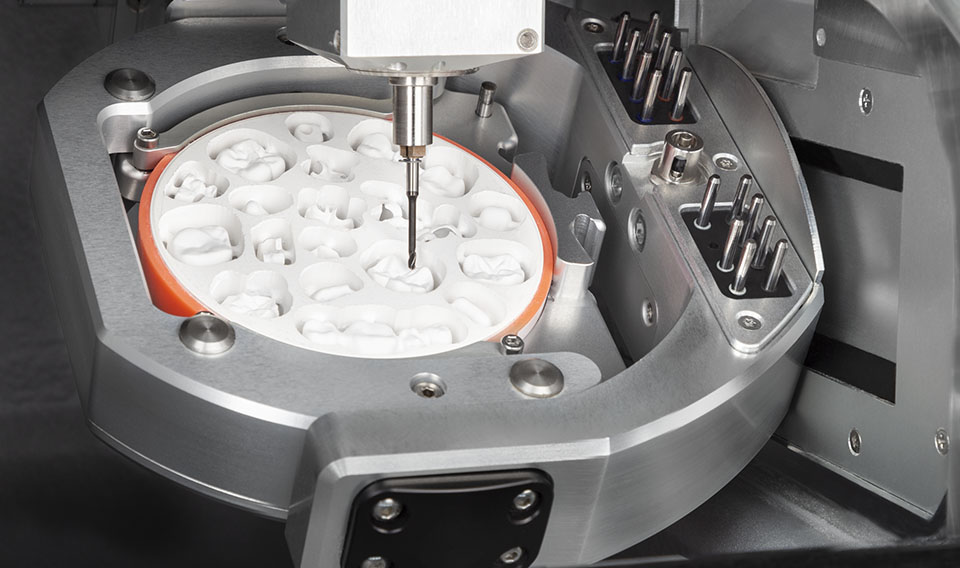

The VHF S5 is a durable and versatile 5-axis milling machine, suitable for both wet and dry processing of blocks and discs. With an automatic changer for eight discs and an optional wet grinding module, the S5 is ideal for working with all common materials, including glass ceramics. Click here to see more information about the VHF S5.

Features of the VHF S5

High Precision
– Ultra HD machining
– Premium spindle with precision bearing, powerful 600 watts and 60,000 rpm
– 3 μm repeatability for outstanding accuracy
Exceptional Stability
– Capable of processing all material types, including CoCr, titanium, and glass ceramics
– Solid cast body ensures minimal vibration during operation
Highly Efficient
– Continuous milling/grinding day and night thanks to the automatic changer for 8 discs, 24 blocks, or 48 prefabricated abutments
– Automatic tool changer for 16 tools
– 3 ionizers neutralize static charge from acrylic chips, keeping the work chamber clean
– QuickFrame magnetic holder allows for easy clamping of discs (1 included)
– Easy operation via DentalCAM software with DIRECTMILL technology – included with no license fees
Maximum Versatility
– Nearly unlimited material variety with 98 mm disc format, approx. 40 block materials, and over 800 prefabricated titanium and CoCr abutment blanks
– Wide range of indications thanks to a ±30° tilt angle on the 5th axis and compatibility with blanks up to 30 mm thick
– Optional wet grinding module transforms the VHF S5 into a wet processing machine
Outstanding Reliability
– Round-the-clock operation
– 100% designed and manufactured in Germany
– 24-month warranty

VHF R5 - advanced and automated millingmachine

The VHF R5 is a powerful milling and grinding machine for dental laboratories, combining innovation and automation. With its ten-fold blank changer and support for both wet and dry processing, the R5 offers maximum precision and stability. Compact in size, yet capable of processing all dental materials. Discover the VHF R5 here.

Features of the VHF R5

Highest Precision

Restorations in Ultra HD
Highly precise spindle with 800 watts of power and 80,000 rpm
3 μm repeatability for exceptional accuracy

Exceptional Stability

Mills and grinds the toughest materials on the market, including all titanium and CoCr materials
Proven industrial quality
Solid cast body ensures minimal machine vibrations

Independence

Unlimited material variety with 98 mm disc format, approximately 40 block materials, and over 800 titanium and CoCr prefabricated abutment blanks
Covers the widest range of indications, thanks to a ±35° rotation angle on the 5th axis and a disc height of up to 40 mm

Outstanding Reliability

100% designed and manufactured in Germany
Advanced sensor technology to monitor all vital system functions
24-month warranty

Highly Efficient

One of the fastest machines on the market
Revolutionary material loading with Direct-Disc technology
Automatic changer accommodates up to 10 discs, 60 blocks, or 60 prefabricated abutments
Webcam in the work chamber for monitoring and remote maintenance
DirectClean technology enables both wet and dry processing on-the-fly
Screw access channel drilling – saves costs on “meso” blocks
Extremely user-friendly operation with DentalCAM software and DirectMill technology, both included with the VHF R5 without any licensing fees

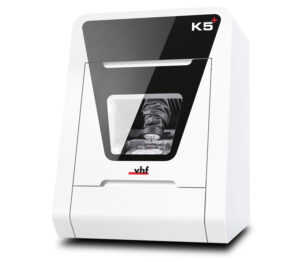

VHF K5+ - the ultimate dry millingmachine for dental laboratories

The VHF K5+ is an advanced 5-axis dry milling machine, specifically developed for dental laboratories. The machine combines high precision with efficiency and is suitable for a variety of materials. With innovative features such as DIRECT DISC Technology, an integrated ionizer, and a powerful 820 W spindle, the K5+ delivers top performance and ease of use for every dental professional. Click here to learn more about the VHF K5+.

Features of the VHF K5+

Exceptional Precision
– Restorations in Ultra HD
– Premium spindle with quadruple ball bearings made from hybrid ceramic for the highest concentricity
– 3 μm repeatability for outstanding accuracy
Complete Independence
– Unlimited material access with 98 mm disc format, separate holders for blocks and prefabricated abutments available
– Covers the widest range of indications, thanks to a ±35° rotation angle on the 5th axis and blanks up to 40 mm thick (metals up to 18 mm)
Highly Economical
– Ionizer and improved air circulation for easy machine cleaning
– DIRECT DISC technology for tool-free disc mounting – place your workpieces in just a few seconds
– Automatic tool changer for 16 tools
– Webcam in the work area for remote operation and service
– Ethernet interface for stable connection
– Very easy to operate via DENTALCAM software with DIRECTMILL – included with the machine and no licensing fees
Exceptional Stability
– Mills the toughest materials on the market, including CoCr
– Powerful 820W, 60,000 RPM spindle
– Heavy industrial-grade quality for maximum rigidity
– Solid cast body ensures low vibration
Exceptional Reliability
– Fully developed and manufactured in Germany
– Advanced air-sealing concept to protect mechanics, electronics, and the spindle
– 24-month warranty

VHF E5 - Compact 5-axis milling machine without compressed air, ideal for digital dentistry

The VHF E5 is a user-friendly plug-and-play milling machine from the Ease line, designed for milling materials such as composites, PMMA, wax, zirconia, and CoCr alloys. Since the E5 does not require compressed air, you have maximum flexibility in placement and save on installation costs. With its open system architecture and integrated CAM software, the machine is quickly operational and easy to integrate into any digital workflow for dental restorations. Click here to order the VHF E5!

Key Benefits:

No compressed air required – maximum freedom
Wide range of materials, including CoCr
5-axis milling with high precision (3 μm repeatability)
Open software and compatible with all scanners
Compact size, easy to install
Cost- and environmentally friendly due to lightweight design and low energy costs

Applications: Crowns, bridges, inlays, onlays, dentures, implant structures, drill guides, splints, veneers, and more.

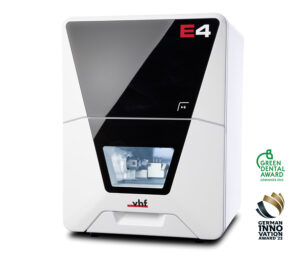

VHF E4 - Compact 4-axis millingmachine for wet and dry milling

The VHF E4 is a lightweight (28 kg), plug-and-play CNC milling machine designed for the fast and precise milling of dental restorations such as crowns, bridges, inlays, onlays, and veneers. The machine supports both wet and dry milling of materials like zirconia, PMMA, glass ceramics, and composites, and operates without compressed air thanks to the innovative AIRTOOL technology.

With an 800W spindle (60,000 rpm), automatic tool changer (7 tools), and compatibility with intraoral scanners and CAD software, the E4 is ideal for chairside applications. The integrated DENTALCAM software (without licensing fees) makes the workflow simple and efficient. The VHF E4 millingmachine.

Key Benefits:

No compressed air required – lower costs and flexible placement
PUREWATER technology – wet grinding without additives
Compact size – easy to integrate into any practice or lab
Open system – works with various scanners and materials
Fast, precise, and cost-effective
A complete and modern solution for high-quality dental restorations

VHF E3 - Automated trimming of aligners and occlusal appliances

The VHF E3 is an advanced CNC milling machine, specifically designed for the automatic trimming of aligners, splints, and other orthodontic plastics. With a processing time of less than 60 seconds per aligner, the E3 guarantees maximum efficiency and consistent top quality.

Thanks to the included TRIMCAM software, the trim line is automatically recognized based on your digital planning data. The machine is fully plug-and-play and requires no compressed air or tools for model placement – simply unpack, connect, and start.

Look at the VHF E3.

Key Features:

Fast & Precise: 800W spindle (60,000 rpm), processes aligners in <60 seconds
Automatic: TRIMCAM automatically recognizes the trim line
User-friendly: Tool-free clamping system, intuitive software
Cost-effective: No compressed air required, low operational costs
Compact & Lightweight: Easy to integrate into any workflow
Open System: Works with all intraoral scanners and planning software

Look at the website of VHF
