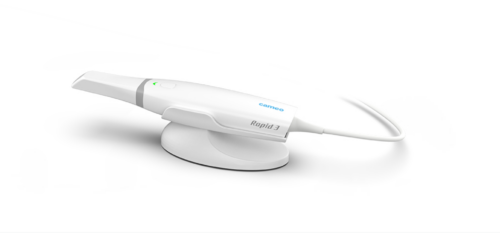

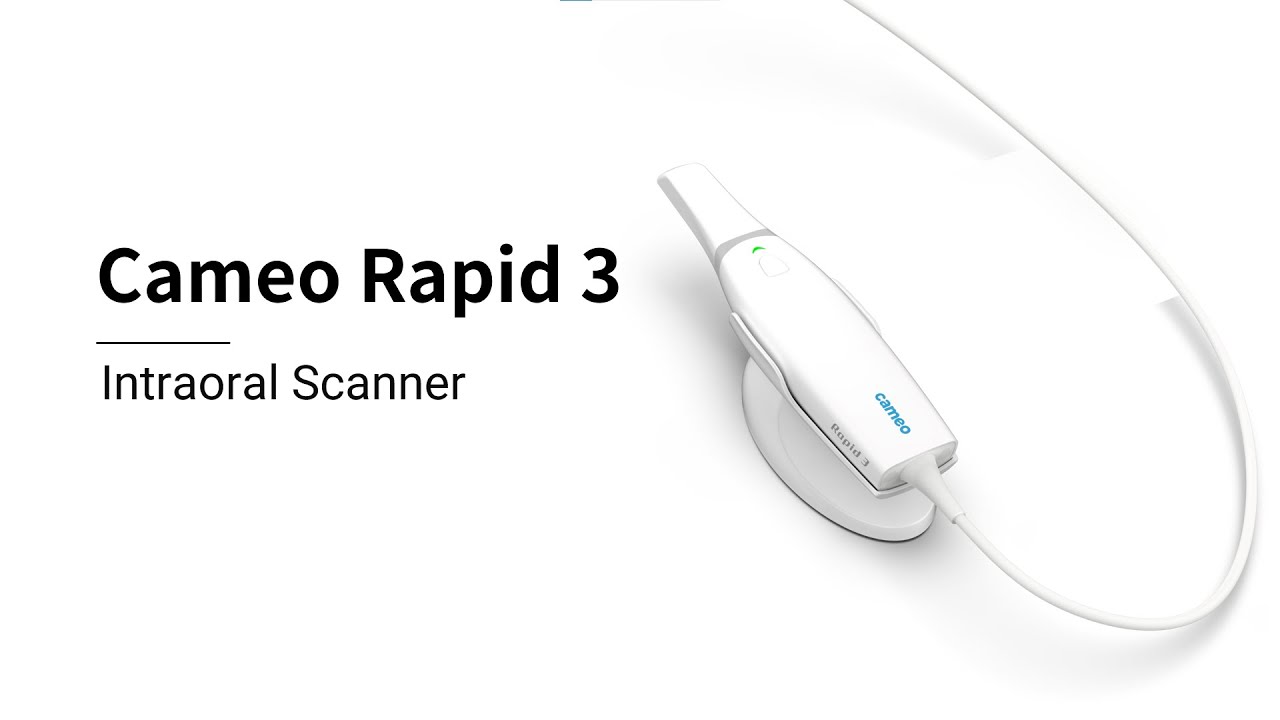

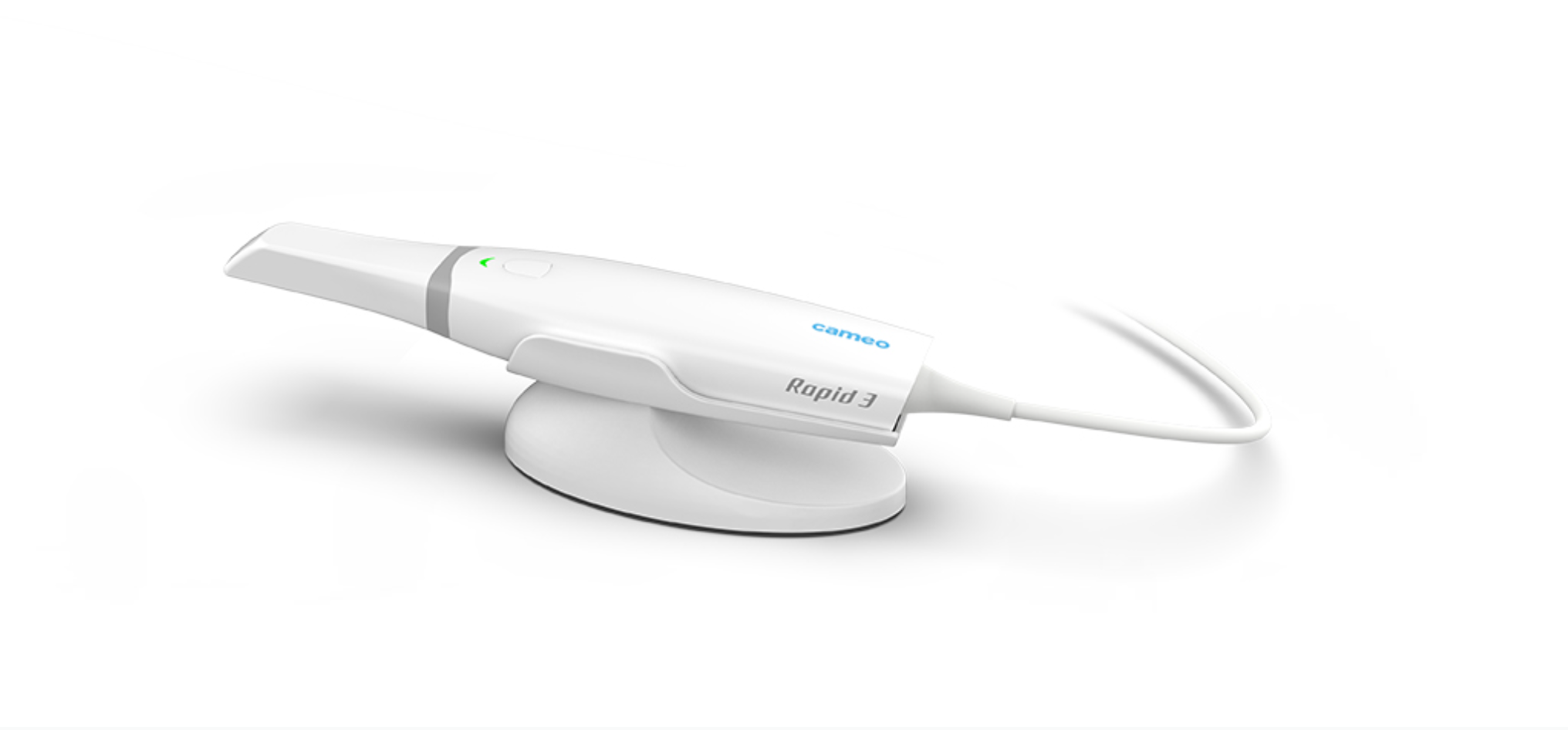

Aidite Rapid 3 Intra Oral Scanner

The intra oral scanner Rapid 3 from Aidite is one of the most affordable and value for money scanners of the moment. An affordable scanner that is easy to hold due to its light weight of just over 200 grams. The scanner is easy to use because it is connected to the PC with only 1 USB-C cable. The Rapid 3 offers standard functions such as the automatic anti-condensation system, 1-click control system and Autoclavable.

Offers a very efficient digital solution at the chairside
Data collection of complex cases runs smoothly and accurately
User-friendly
Intuitive and user-friendly design
Direct and practical online tools
Share patient data in the blink of an eye
Versatile application in different clinical scenarios, always a flexible response
No calibration required
1 USB-C cable

AI Scan
With the AI scan function, the software automatically recognizes and filters unnecessary soft tissue data during scanning. This results in a faster scanning process with a clearer image! You can also design a 3D print base/model with the scanner software with one click without complicated external design software. Simple and fast! It is also possible to import implants/scan abutments with one click, so you have the right data and limit the number of remakes.

Features in view:

Data collection of complex cases is smooth and accurate. The high precision and greater depth of field of Aidite Rapid 3 make it possible to perform intraoral data collection of implant cases with large missing teeth smoothly and accurately, and cover implant cases with removable dentures and long bridges with missing teeth, etc., which can shorten the time of patient visit and improve the patient experience.

Data collection before implantation of removable dentures:

Data collection before implantation of missing long bridges:

Technical specifications:

Scan area: Standard scanner tip: 14 mm x 15 mm x 15 mm
Small scanner tip: 12 mm x 9 mm x 15 mm
Scan depth: 15 mm (up to 20 mm digital)
Scan principle: Structured light
Dimension (L×W×H): 240 mm x 49.5 mm x 30.5 mm
Weight: 240 g
Output data format: STL, OBJ, PLY
Connector: USB3.0
Power: 12VDC/3A
