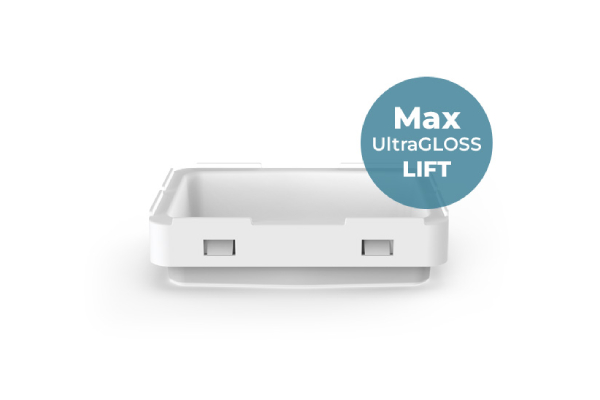

The Asiga LIFT trays with Liquid Interface Film Technology are liquid resin material trays for the Asiga MAX and MAX X, featuring a completely new layer technology. These LIFT™ material trays ensure that a thin layer of uncured resin remains on the surface of the film. This significantly reduces the risk of scratches and damage cause by the peeling force when cured layers a seperated from the film. This technology results in a longer tray lifespan and faster print times.
The LIFT trays for Asiga MAX 3D printers are available in the LIFT and LIFT UltraGloss versions. The Asiga MAX series includes the MAX, MAX X, MAX 2, MAX UV and MAX 405.
Lift UltraGloss
The LIFT UltraGloss variant is deisnged to deliver directly glossy and exceptionally smooth surfaces on printed objects, achieving an even better result than previous solution. This improved post-processing efficiency by reducing polishing time, and in some cases polishing is no longer required
How the LIFT tray works
Peel force
Because the film resin interface remains liquid, each cured layer can be released more easily. This reduces mechanical stress on both the print and the film, resulting in lower peel force per layer.
Faster printing
Due to the reduced peel force, layer changes can occur more quickly. In certain applications, print times can be reduced by up to 50 percent, depending on the resin used.
Longer tray lifespan
Because the liquid interface protects the film the tray has an extended service life. According to Asiga, print volumes of up to 20 liters of resin are achievable. This value is indicative and not guaranteed.
Glossy or pre-polished surface finish
Ideal for applications where a smooth, clear or glossy surface is critical such as transparent parts, splints, night guards or bite splints. The UltraGloss version can also be used to add extra gloss to dental models and prosthetics. This reduces polishing effort and in some cases eliminated the need for polishing altogether.
Brand: Asiga
Compatible printer types: MAX 2, MAX, MAX UV, MAX X
Product number: PN/08010
Tray capacity: up to 20 liters of resin consumption
Application: Among others, Splints
