DWX-52D Plus – DGSHAPE – Roland – 5-axis Milling machine

Millable materials:
Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum, Glass fiber reinforced resin, CoCr sintered metal, Polycarbonate

Roland DWX-52D Plus – 5-Axis dry milling machine

The Roland DWX-52D Plus is a 5-axis milling machine for digital milling of dental devices with various materials such as Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum, Glass fiber reinforced resin, CoCr sintered metal, Polycarbonate. This DWX-52D Plus is much more efficient and accurate than ever before in production with faster milling times, smoother operation and a new, more robust spindle. Due to the advanced 5-axis technology, it offers the possibility of milling a wide range of dental materials and applications with maximum speed and optimum precision.

The most important features for this machine are:

• Fully open CAD/CAM system
• 5-axis dental milling machine
• Up to 15 burs automatically changer
• 90° milling
• Easy spindle change
• Remote monitoring of the machine

The DGSHAPE DWX52-D Plus can mill the following materials:

• Zirconia,
• Wax,
• PMMA,
• Composite resin,
• PEEK,
• PEKK,
• Gypsum,
• Glass fiber reinforced resin,
• CoCr sintered metal,
• Polycarbonate

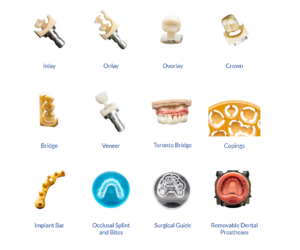

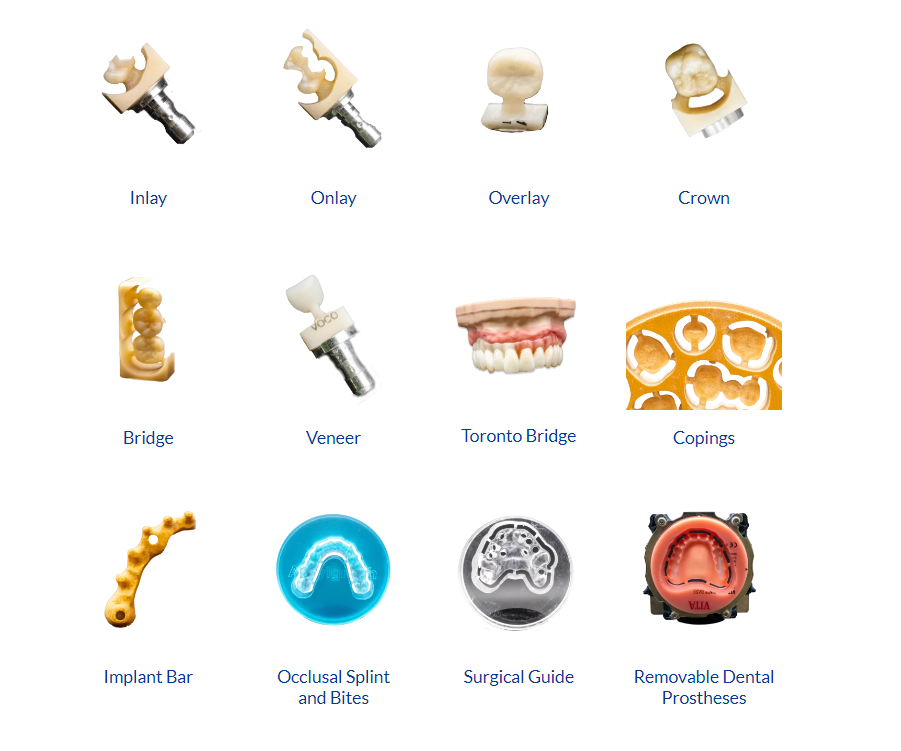

Milling of the following dental application with the DWX-52D Plus:

• Inlays
• Onlays
• Overlays
• Crowns
• Bridges
• Veneers
• Copings
• Implant bar
• Occular splints
• surgicaltemplates
• Removable Dental prostheses

Technical features:

Brand: DG Shape / Roland
Typ: DWM52-D Plus
Size: 495 mm x 660 mm x 600 mm (breed x diep x hoog)
Weight: 67 kg
Software: optional Mill Box. / DGSHape cloud
Milling disc:

• Disc with step 98.5 mm
• Schijf 95 mm
• Pin block 6 mm

Number burs: tot aan 15
Interface: USB
Power requirements: AC 100 V to 240 V ±10%, 50/60 Hz (overvoltage category II, IEC60664-1), 2.0 A
Power usage: 200W

Options:

• CA-DK1 Denture Kit for small cases
• CA-DK2 Denture Kit
• ZMA2-52D Open edge adapter

Downloads:

• Brochure
